GDP, a Delta Information Systems Company, is proud to announce the 2355 Next Gen 16-Channel Telemetry Gateway.

The Model 2355 Next Generation Telemetry Gateway provides the necessary signal processing to pass synchronous serial PCM telemetry data either to or from an Ethernet network. User programmability permits the unit to function as a Telemetry-to-Ethernet converter (packetizer) or as an Ethernet-to-Telemetry converter (de-packetizer). Each channel is individually configurable as either a packetizer or a de-packetizer. The MD2355 is available in 4, 8, 12 and 16-channel configurations.  Each channel accepts PCM data streams with associated coherent clocks. PCM data is captured and packetized into Ethernet packets along with header information. Packet size and buffering can be user selected or automatically controlled to minimize latency. The remote unit receives the Ethernet packets from the network and de-packetizes the PCM data. Using the statistics provided by the packetizer, the de-packetizer reconstructs the original PCM data stream and coherent clock. Input PCM data streams may be independent in content and rate. Up to 16 Channels are provided in the 1U Chassis.

What sets the GDP Telemetry Gateway apart from other options on the market:

• UP to 16 channels of I/O

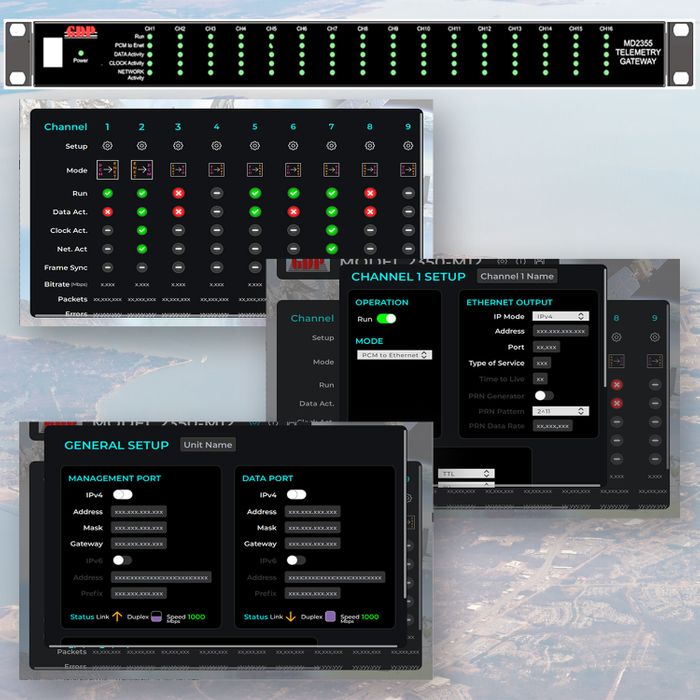

• New Web Browser GUI
• Supports 218-10 & 218-20 Protocols
• Auto Rate Tracking
• IRIG Chapter 7 Serial-to-Ethernet function*
• Bit Rates up to 50 Mbps
• Enhanced network error reporting
• Low Latency
• Separate Ethernet Control & Data ports (RJ45 or Fiber)
• 1Gbps and 10Gbps auto detect*

*Future features

This compact high-density transport solution will bring down the per/channel costs while increasing the system mean time between failures (MTBF).
