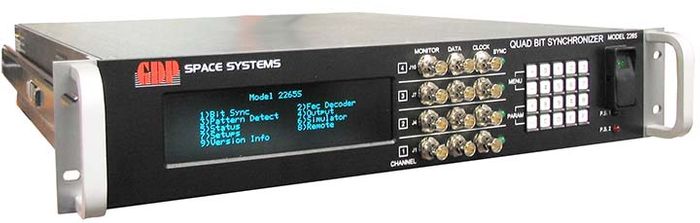

The Model 2265 is capable of maintaining synchronization with the signal of interest down to –3 dB Eb/No at signal levels down to 100mVpp. When searching for the signal, acquisition is attainable in less than 50 bits. The unit can maintain synchronization for a period of at least 256 bit periods without a transition.

The standard IRIG randomizer/derandomizer for forward and reverse sequences is provided. CCITT V.35 and V.36 scrambling/descrambling is also provided. A variety of Viterbi decoders are available.

To assure synchronization to the intended data stream, the Frame Pattern Detector may be invoked. Up to a 64-bit long pattern is detected. Maintaining synchronization with this pattern at the programmed repetition rate and synchronization strategy produces a lock signal. An Automatic Polarity Correction (APC) mode is provided for inverted data.

Each of the channels include 4 Analog inputs. Additional inputs are available for RS-422 and TTL levels. Each channel has a variety of outputs that include; 3 independent programmable TTL Coded PCM outputs and 1 TTL Auxiliary Coded output (4 total), 2 independently programmable TTL Clock outputs and one TTL Auxiliary Clock output (3 total), two RS-422 Coded PCM and two RS-422 Clock outputs. Front Panel Monitor BNCs are provided for each channel that include one Selected Input Monitor, one PCM Data Out and one Clock Out.

The MD2265 includes several unique features to determine the quality of the data. The first is an Eb/No (Signal Quality) measurement. From this measurement, the error rate of the data can be determined. The MD2265 also measured errors in the frame synchronizer pattern as well as errors in the Viterbi stream when these modes are enabled. A bit-error-rate (BERT) function is also provided. This allows link test in a short loop back to verify proper operation of the module, or long loop-back to measure performance of the link. An advanced lock detector ensures a solid lock indication for the module.
