Modular and extendable to suit a variety of project or matrixed organization telemetry processing needs, the Model 3022AP provides the same set of integrated data decommutation, EU conversion, and data output formatting methods used in our line of high performance range control center and low-latency range safety telemetry data server lines.

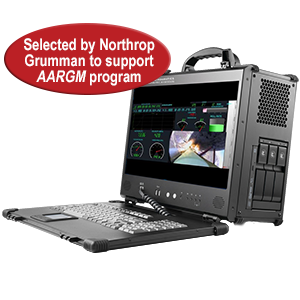

The 3022AP offers rugged design, very light weight, and a 17″ 1920 x 1080 high resolution display specifically designed to support long-term field and lab portable test applications.

Overview
The 3022AP TDP delivers ample processing power to meet the most demanding portable system real-time mission data display, recording and networked data distribution requirements. Each unit is built specifically to accommodate Acroamatics’ Windows application independent telemetry processing cardset solutions. It meets requirements ranging from single stream instrumentation engineering lab to multi stream range data center telemetry server configurations. The base functional capabilities of the Model 3022AP include low latency IRIG Class I & II PCM decommutation, integrated card embedded low-latency EU processing, recording, display and quick-look analysis, and networked data services.

System Software
Acroamatics Telemetry Software Suite (ATSS) TDP system software includes GUI applications to set up and operate the range of system hardware configurations available. Operators can store and instantly configure the system using project setup libraries managed by ATSS, or alternatively use convenient TMATS, Excel or TDP script file editors to define their own mission support operations from the Mission Console menu, or can control individual TDP functions through specific GUI tools, such as the Data Recording GUI.
