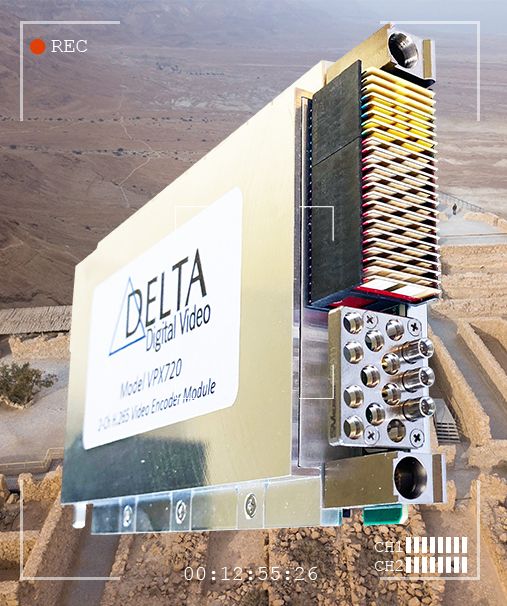

Model VPX720 2-CH H.265 Video Encoder Module

Delta Digital Video

As standards evolve Delta’s VPX720 OpenVPX Encoder provides a SOSA aligned real-time H.265 video encoder solution for integration to any ISR application.

The Model VPX720 provides real-time video compression for HD/SD video formats in a standard OpenVPX form factor. The VPX720 is a low power, 3U module supporting SMPTE and composite video, complying with the ANSI/VITA 65 standard. Capable of processing two video channels with resolutions to 1080p, the module utilizes the H.265 (HEVC) video compression algorithm providing high quality video transmission at various resolutions and a wide range of bandwidths.

Increased efficiency allows for more channels to be transmitted over a given bandwidth, better quality video for constrained bandwidth applications, or lower bandwidth operation to extend the limits of ISR operation and reduce storage size requirements. A “Primary/Secondary” encoding feature enables a second, lower resolution, lower bit rate copy of each video input to be independently configured and streamed simultaneously for a maximum of four streams. The VPX720 also provides an H.264 mode to support legacy infrastructures while providing a future growth path to H.265.

Designed for integration in rugged systems and aligned with SOSA, HOST, and CMOSS standards, the VPX720 is designed to meet the rigors of MIL-STD-810 and compliant with the FMV standards developed by the US MISB. This includes compliance with the video compression, KLV metadata, and transport stream profiles needed to ensure interoperability in downstream PED systems, ensuring the VPX720 meets project requirements.
