The torsionally flexible MULTI MONT SELLA couplings (short form: MMS) have been built in series since 1958. These tried and tested pluggable claw couplings have been continuously adapted to technical developments and cover a torque range from 63 Nm to 1,000,000 Nm.

The diverse MULTI MONT SELLA range of couplings includes numerous designs, so that a suitable coupling is available for almost every type of drive.

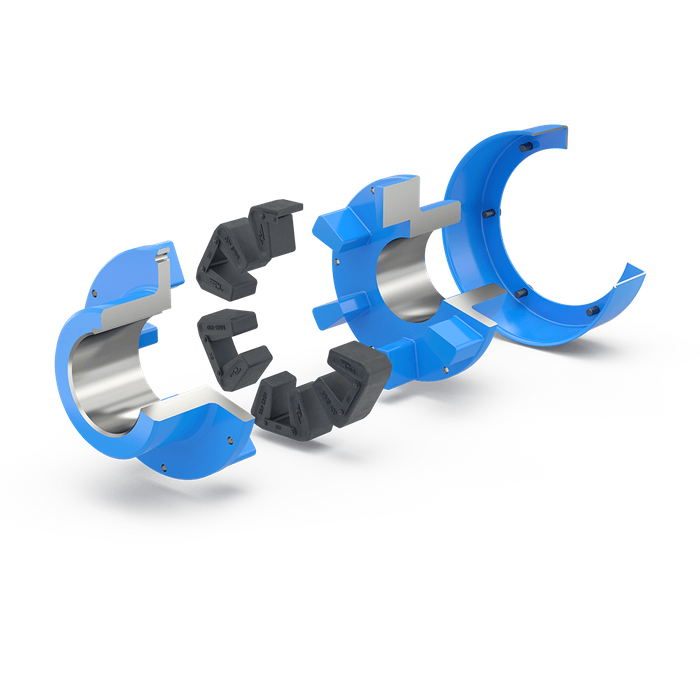

Up to and including size MMS 63, the coupling has a split toothed ring whose individual rubber buffers are connected via an external belt. In addition, 6 saddle studs are used, each with two rubber buffers connected via an outer belt.

The coupling has a separately screwed-on retaining cap that encloses the rubber elements on the circumference. Your screw connection is not involved in the torque transmission. Loosening and pulling back this retaining cap enables simple radial element changes without axially displacing coupled machine parts.
