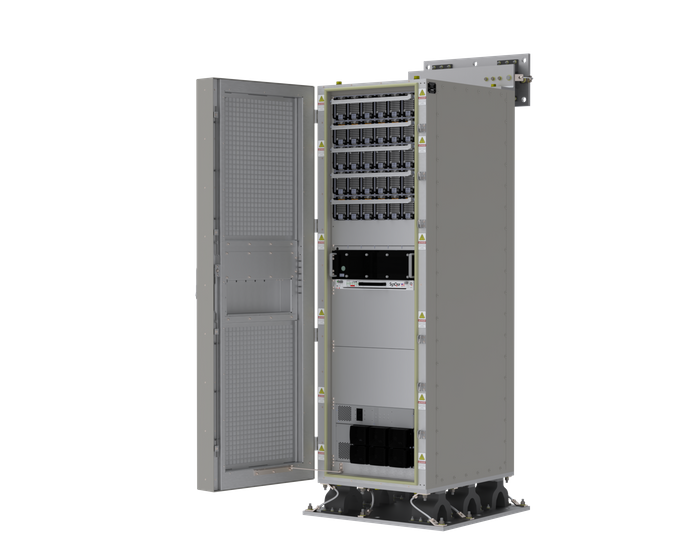

The NS24-30 is designed for hull mounted sonar systems, with 30 channels available in a 72" high rack. Harnessing Nautel’s extensive amplifier design experience and using the latest technology, the NS24-30 is a class leading 50% lighter and 40% less volume than other amplifiers.

Nautel’s HMS transmitters achieve their light weight by using switched mode power supplies (SMPS) and the NS24-30 delivers 800W per channel capability at high efficiency, resulting in low cooling requirements.

Standard output bandwidth is 3kHz to 16 kHz, with reduced output below 5kHz and above 12kHz. The NS24-30 has IP connectivity for control and audio and parallel IO for easy connection to existing systems.

Nautel’s design expertise, coupled with its renowned customer care philosophy results in long and reliable life expectancy for its sonar amplifiers. Nautel provides customer support for all the products it has produced since it’s 1969 inception.
