The TROPOLINE 240 auto-point troposcatter terminal is designed as a robust, light-weight and easy to use Flyaway for C-band communication over long distances.

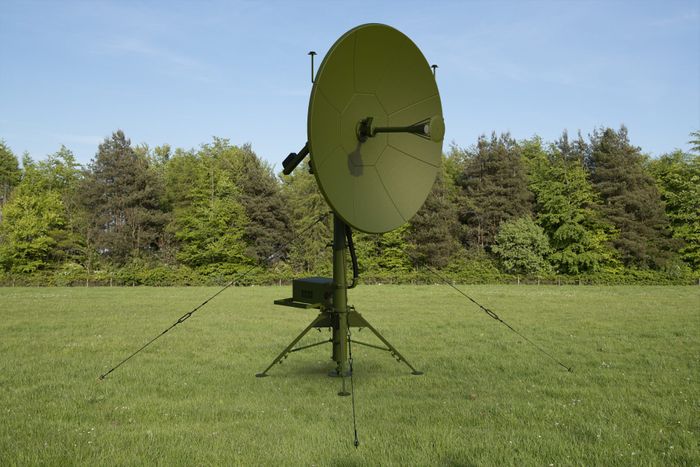

This 2.4m fully automated motorized troposcatter and line-of-sight (LOS) flyaway terminal is made of state of the art composite segmented light weight reflector and military grade pneumatic mast with a quadpod base for high stability. The system comes complete with hand pump for easy deployment of the mast and extension to 3m to clear obstacles. The center-fed architecture reduces antenna signal blockage leading to increased antenna efficiency. Its highly robust design allows it to operate safely in steady winds of 80kph and gusts of 108kph when properly deployed and guyed.

The antenna and RF components are packaged in rugged cases, the mast and its accessories are packaged in military grade bags.

The Antenna Control Unit (ACU) includes all sensors for positioning, orientation, monitoring and control.

The pneumatic telescopic mast and elevation over azimuth positioner are designed for robustness and reliable operation in all weather conditions in all environments and comply with MIL STD 810G as described below.

The center-fed antenna system is comprised of a light weight axisymmetric composite reflector, manufactured with high tolerances to provide excellent sidelobe and cross-polarisation performance.

Tropoline 240

Integration possibilities

ReQuTech is able to provide a complete turnkey system by integrating modem, SSPA and LNB.

Currently designed to work (and optionally supplied) with the Datum Systems M7 modem.

SSPAs up to 2kW can be either installed on the ground or on a shelf mounted on the quadpod base, whichever best suits the application. LNBs can be optionally provided.
